All-in-one and portable
Capture, processing, recording and streaming in a ruggedized briefcase. A self-contained solution that deploys wherever it’s needed.
VEGA System · Portable edition

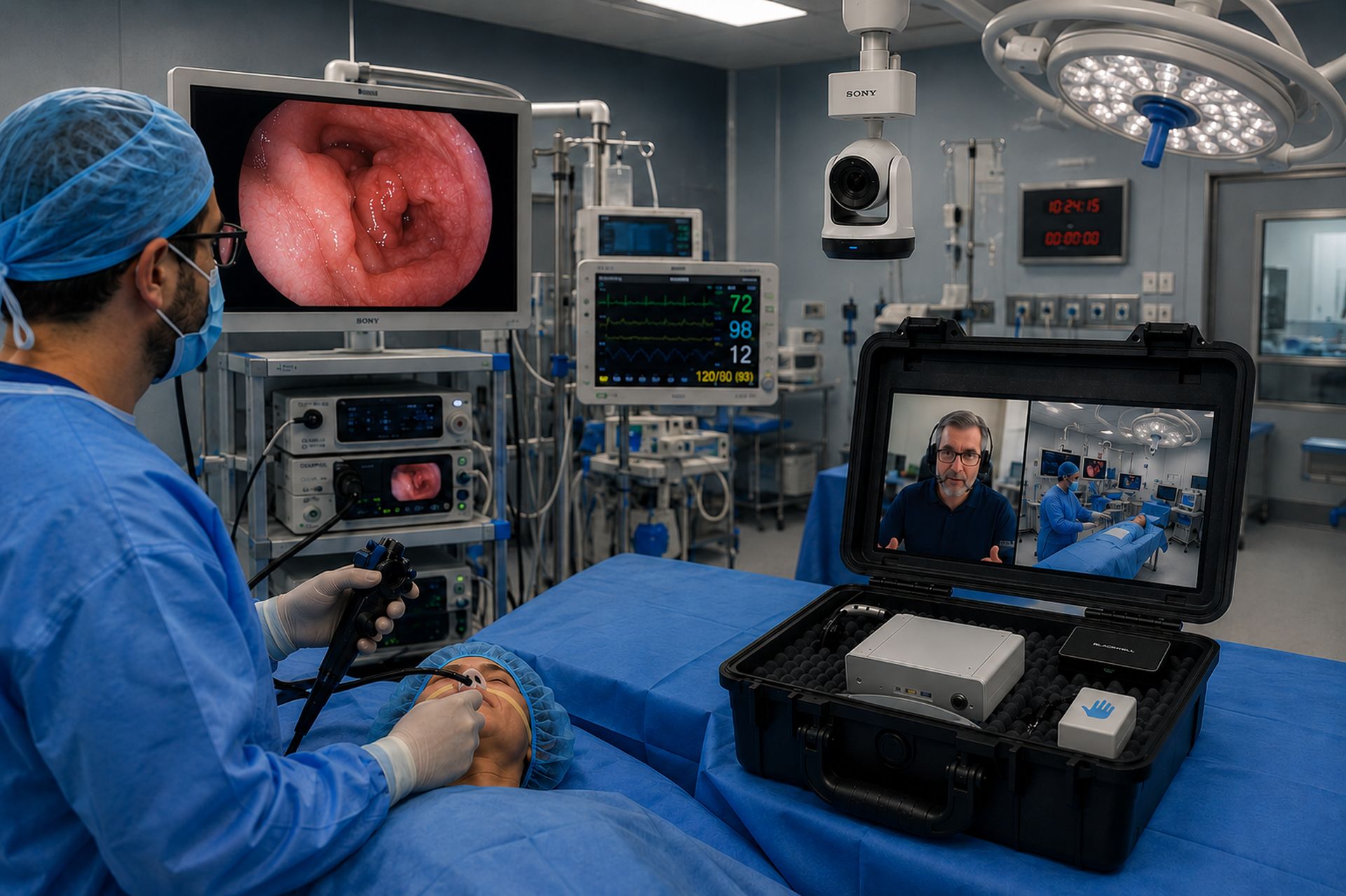

All the operating room’s video.
In one briefcase.
VEGA Portable captures, routes and shares your clinical environment’s video signals in real time —endoscope, PTZ camera, monitors— and delivers them to screens, secure recording or telepresence. Plug & play, without touching your existing equipment.
LIVE SIGNAL · TELEPRESENCE
- 2 FHD signals + PTZ in parallel
- Recording up to 2,000 h
- Low latency · Plug & Play
- Encrypted streaming
- 2-year warranty
Why VEGA Portable
The operating room’s control room, wherever you need it
A single ruggedized unit brings together capture, processing, recording and streaming. It deploys in minutes and adapts to virtually any combination of formats already in place.
Plug & Play
Automatic signal detection and instant connection. No need to modify or update pre-installed equipment.
Low latency, high quality
Two Full HD signals plus PTZ in parallel, with H.264/H.265 encoding for smooth video that’s faithful to the original.
Security and privacy
Encrypted streaming, built-in firewall and role-based access control (RBAC), with stripping of confidential data.
Built-in telepresence
Connects to videoconferencing platforms for remote mentoring, training or live tele-assistance.
Autonomy and connectivity
Wi-Fi, Gigabit Ethernet and optional 4G/5G. Optional battery to operate without relying on mains power.
Connectivity & support
Ready to use, right out of the case
VEGA Portable can bring its own connectivity and a direct line to our team, so it works the moment you open it.
Its own 4G/5G connectivity
An optional integrated router gives VEGA Portable independent mobile connectivity, without relying on the hospital’s network.
Very low data usage
Engineered to transmit efficiently, so it consumes minimal data — even over mobile networks.
Built-in support button
If clinicians or users run into any issue while using VEGA Portable, a single tap connects them directly with our team.
Support
On-device button
Please note: 4G/5G availability depends on the hospital, the country and each tool’s conditions of use. Every case is assessed individually.

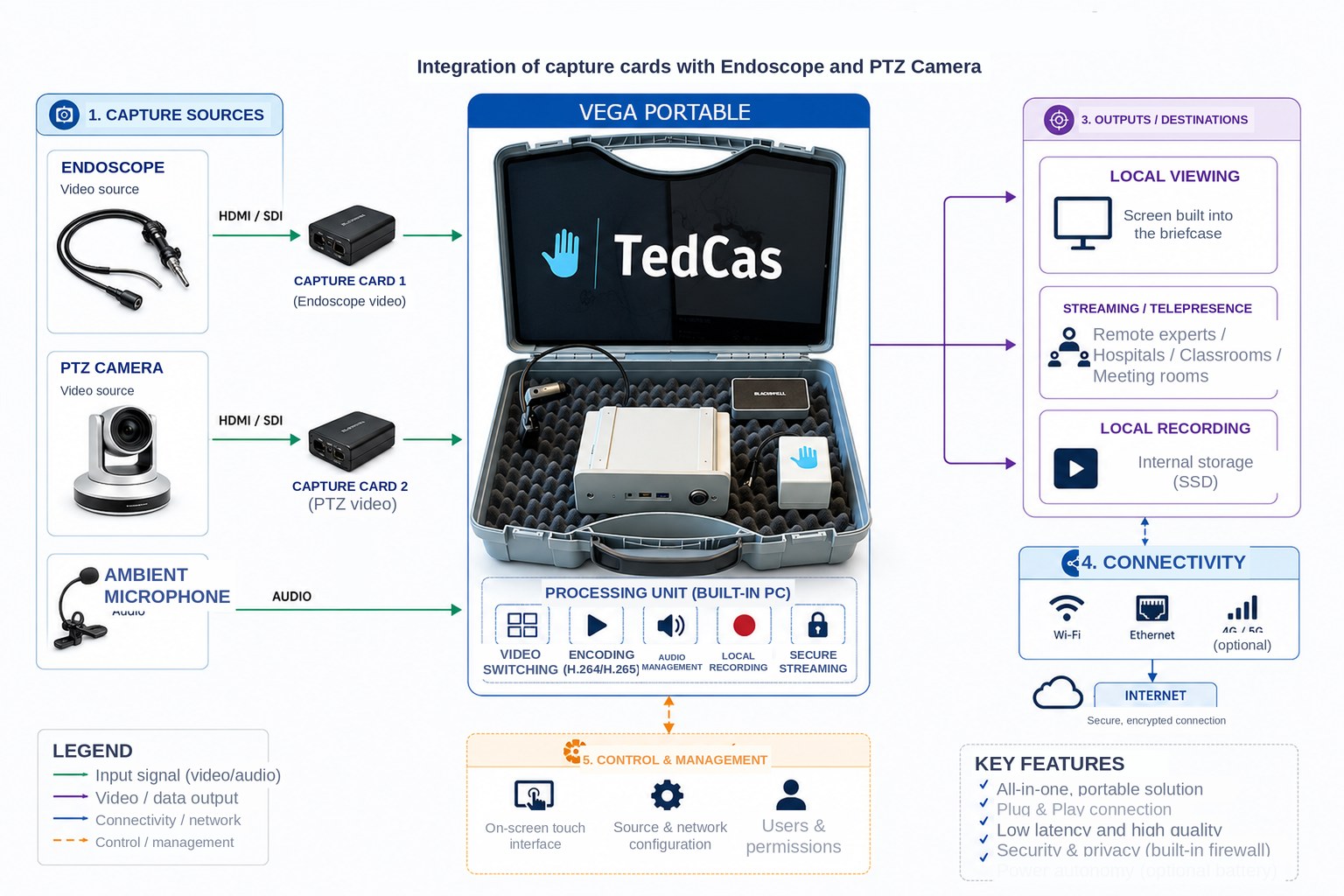

How it works
From sensor to screen, in one continuous flow
VEGA Portable integrates capture devices, a processing unit and storage to securely distribute any image and video source in the clinical environment.
Capture
Connect the endoscope, PTZ camera and microphone through the HDMI/SDI capture devices. Automatic signal detection.
Route and process
The built-in unit switches, encodes and protects each signal in real time, controlled from the touchscreen.
Distribute
Local viewing, recording to the internal SSD, or encrypted streaming to remote experts, classrooms and meeting rooms.
Zoom
Specifications
Technical datasheet
Capabilities of the VEGA system for routing and controlling video signals in clinical environments.
Capture and recording
- Simultaneous recordingUp to 8 FHD signals
- Recording timeUp to 2,000 h (FHD)
- Internal storage8 TB SSD
- Video formatsMP4 · H.264
- Image formatsJPG · PNG
- Signal detectionAutomatic
Inputs and outputs
- Video inputsUp to 10
- Input formatsSDI · HD/3G-SDI · DVI-D · S-Video · Composite
- Video outputsUp to 4
- Native outputDVI (others via adapter)
- AudioMini-jack LINE + MIC
Connectivity and control
- NetworkWi-Fi · Gbit Ethernet · 4G/5G opt.
- USB portsUSB 3.0 ×2 · USB 2.0 ×2
- ExportUSB · Ethernet · Wi-Fi · CD/DVD
- Interface10" multi-touch
- Access controlRole-based (RBAC)
Security and support
- StreamingEnd-to-end encrypted
- Network protectionBuilt-in firewall
- ConfidentialityRestricted-data stripping
- Power110–240 V AC · battery opt.
- Warranty2 years, parts and labor
Medical device registration · UDI 8437014900002 (VEGA 1.0)
Download datasheet (PDF)
Use cases
One briefcase, many clinical scenarios
Designed for professionals’ workflow, with no friction or complex installations.
Live

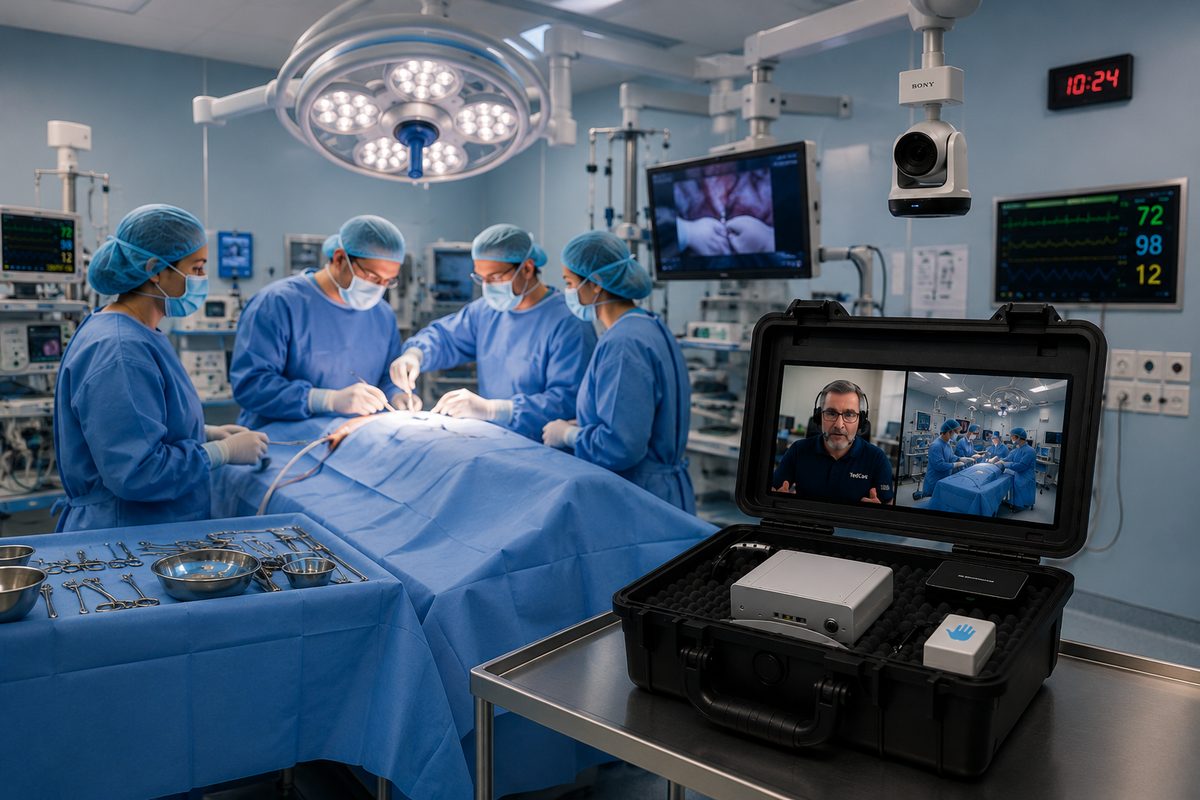

Mentoring and tele-assistance
A remote expert accompanies and guides the procedure in real time, seeing exactly what the surgeon sees.
Education

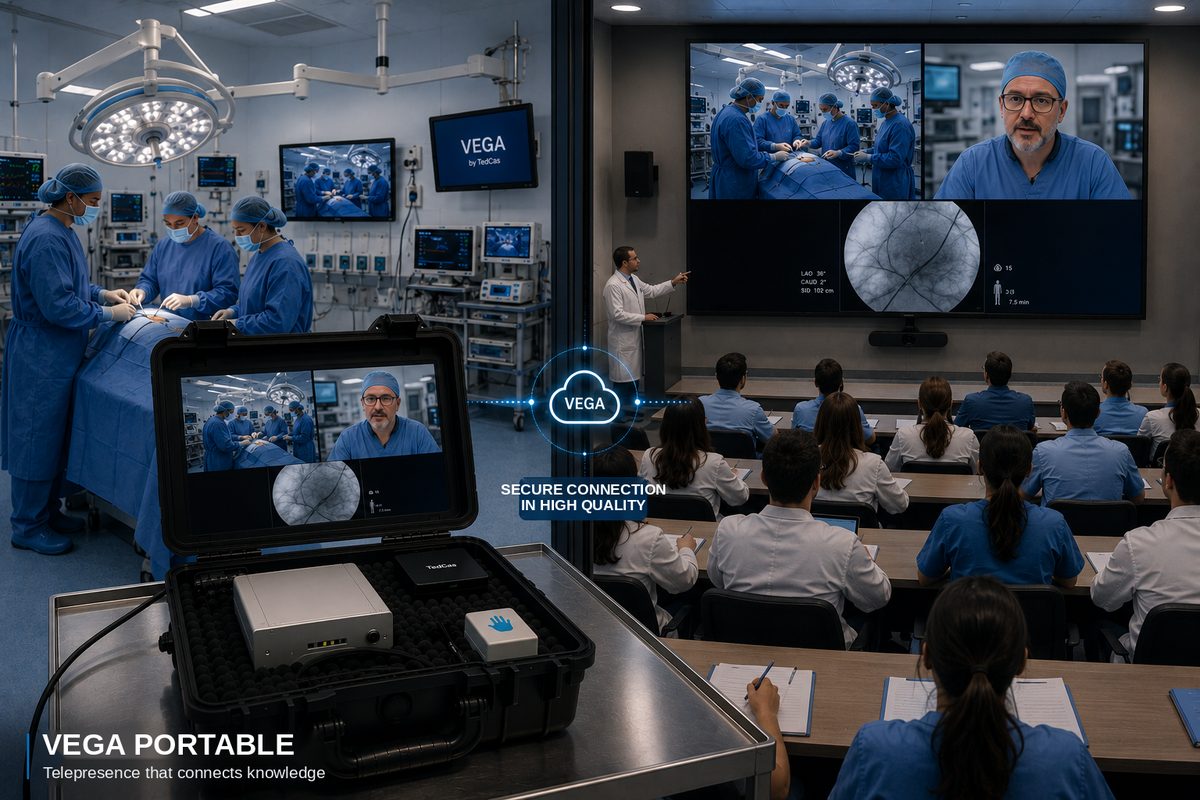

Training and education
Stream procedures to classrooms and meeting rooms in clinical quality for medical teaching.
Telepresence across sites
Connect operating rooms, hospitals and campuses for joint sessions and second opinions.
Clinical documentation
Securely record and archive procedures on the unit’s internal storage.
Support for the equipment’s entire service life
Every component is covered by warranty and by an extendable maintenance contract that ensures the product’s continuous availability, with minimal downtime.
2 years
Warranty included
Parts and labor on every system component.
10 years
Extendable coverage
Optional maintenance contract that extends full coverage.
0 rework
No changes to your equipment
Requires no changes or updates to already-installed equipment.
Contact
Let’s talk about your operating room
Tell us about your use case —signal types, number of operating rooms, telepresence scenario— and we’ll propose the VEGA Portable configuration that best fits your setup.
TedCas Medical System · Navarra, Spain
We reply as soon as possible
